先日、C#のマイクロサービス開発ツール "Project Tye" を試す記事を書きました。
先日の記事ではこのような構成のサンプルアプリケーションを作りました。
- フロントエンドアプリケーション (ASP.NET Core Razor Pages)
- バックエンドアプリケーション (ASP.NET Core Web API + Redis)
- Tyeの構成ファイル (tye.yaml)
今回は本家のブログに沿って、サンプルアプリケーションをKubernetesにデプロイしてみます。
Azure Kubernetes Serviceを用意する
まずKubernetesを用意します。今回は手っ取り早く、Azure Kubernetes Service (AKS)を使います。
AKSリソースの作り方はドキュメントを参照してください。

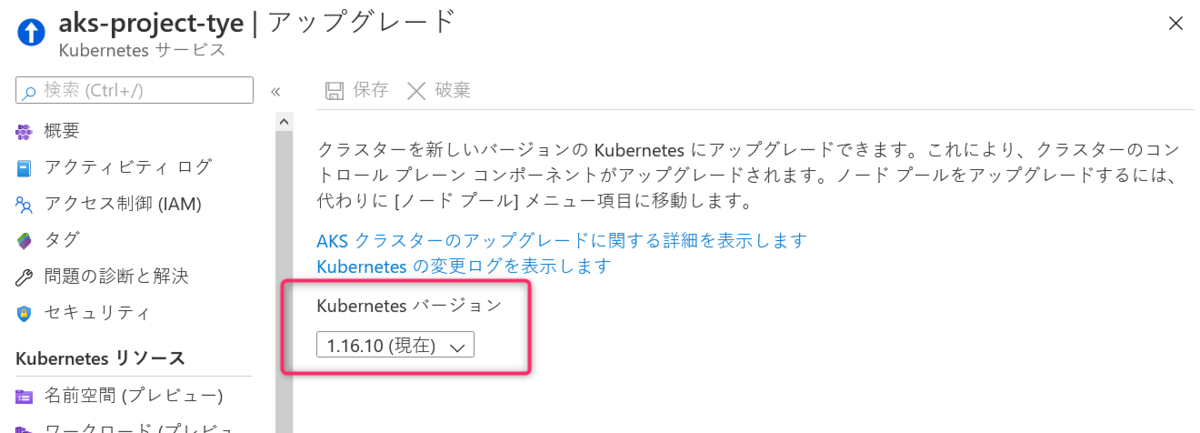

Kubernetesのバージョンは 1.16.10
で検証しています。
デプロイ環境を構築する
これらのツールをインストールします。私はWSL2のUbuntu 20.04で試しています。
Azure CLI
kubectl
AKSに接続する
Azure CLIを使って、AKSへの接続情報を取得します。
$ az aks get-credentials --resource-group rg-project-tye --name aks-project-tye Merged "aks-project-tye" as current context in /home/yuta/.kube/config
AKSにRedisをデプロイする
サンプルアプリケーションで使用するRedisをAKSにデプロイします。
ブログ通り、あらかじめ用意されたYAMLファイルを利用します。
$ kubectl apply -f https://raw.githubusercontent.com/dotnet/tye/master/docs/tutorials/hello-tye/redis.yaml
deployment.apps/redis created
service/redis created
デプロイされたことも確認しておきましょう。
$ kubectl get pods NAME READY STATUS RESTARTS AGE redis-58897bf8c-mrh9g 1/1 Running 0 5m2s
AKSにサンプルアプリケーションをデプロイする
Tyeのデプロイコマンドを使って、サンプルアプリケーションをAKSにデプロイします。
このときのtye.yaml
はこのようになっています。(前回の記事と同じ)
# tye application configuration file # read all about it at https://github.com/dotnet/tye # # when you've given us a try, we'd love to know what you think: # https://aka.ms/AA7q20u # name: microservice services: - name: backend project: backend\backend.csproj - name: frontend project: frontend\frontend.csproj - name: redis image: redis bindings: - port: 6379 connectionString: "${host}:${port}" - name: redis-cli image: redis args: "redis-cli -h redis MONITOR"
デプロイする際、サービスとなる各アプリケーションのコンテナーイメージが作成されます。
そのため、コンテナーイメージをホストするコンテナーレジストリーを指定する必要があります。
今回は自分のDockerhubアカウントを使用しました。
また、Redisの接続文字列を聞かれるので redis:6379
と入力します。
$ tye deploy --interactive Loading Application Details... Verifying kubectl installation... Verifying kubectl connection to cluster... Enter the Container Registry (ex: 'example.azurecr.io' for Azure or 'example' for dockerhub): tsubakimoto Processing Service 'backend'... Applying container defaults... Compiling Services... Publishing Project... Building Docker Image... Created Docker Image: 'tsubakimoto/backend:1.0.0' Pushing Docker Image... Pushed docker image: 'tsubakimoto/backend:1.0.0' Validating Secrets... Enter the connection string to use for service 'redis': redis:6379 Created secret 'binding-production-redis-secret'. Generating Manifests... Processing Service 'frontend'... Applying container defaults... Compiling Services... Publishing Project... Building Docker Image... Created Docker Image: 'tsubakimoto/frontend:1.0.0' Pushing Docker Image... Pushed docker image: 'tsubakimoto/frontend:1.0.0' Validating Secrets... Generating Manifests... Processing Service 'redis'... Applying container defaults... Service 'redis' does not have a project associated. Skipping. Compiling Services... Publishing Project... Service 'redis' does not have a project associated. Skipping. Building Docker Image... Service 'redis' does not have a project associated. Skipping. Pushing Docker Image... Service 'redis' does not have a project associated. Skipping. Validating Secrets... Generating Manifests... Service 'redis' does not have a container. Skipping. Processing Service 'redis-cli'... Applying container defaults... Service 'redis-cli' does not have a project associated. Skipping. Compiling Services... Publishing Project... Service 'redis-cli' does not have a project associated. Skipping. Building Docker Image... Service 'redis-cli' does not have a project associated. Skipping. Pushing Docker Image... Service 'redis-cli' does not have a project associated. Skipping. Validating Secrets... Generating Manifests... Service 'redis-cli' does not have a container. Skipping. Deploying Application Manifests... Verifying kubectl installation... Verifying kubectl connection to cluster... Writing output to '/tmp/tmph3XlUg.tmp'. Deployed application 'microservice'. Time Elapsed: 00:00:59:77
デプロイが行われ、フロントエンド、バックエンド、RedisのPodが作成されたことを確認します。
$ kubectl get pods NAME READY STATUS RESTARTS AGE backend-5d7b894dcf-2zjkd 1/1 Running 0 5m24s frontend-84698d8fcf-xjglj 1/1 Running 0 5m24s redis-58897bf8c-mrh9g 1/1 Running 0 42m
デプロイされたアプリケーションを確認する
AKSの80番ポートにポートフォワーディングし、ブラウザで http://localhost:5000
にてアプリケーションが動作していることを確認します。
$ kubectl port-forward svc/frontend 5000:80 Forwarding from 127.0.0.1:5000 -> 80 Forwarding from [::1]:5000 -> 80
AKSにデプロイしたアプリケーションを削除する
AKSにサンプルアプリケーションがデプロイされ、動作を確認することができたので、一旦Tyeの undeploy
コマンドでAKSからアプリケーションを削除します。
$ tye undeploy Loading Application Details... Found 7 resource(s). Deleting 'Service' 'backend' ... Deleting 'Service' 'frontend' ... Deleting 'Service' 'redis' ... Deleting 'Deployment' 'backend' ... Deleting 'Deployment' 'frontend' ... Deleting 'Deployment' 'redis' ... Deleting 'Secret' 'binding-production-redis-secret' ... Time Elapsed: 00:00:06:51
$ kubectl get pods
No resources found in default namespace.
まとめ
すべてコマンドラインでサンプルのマイクロサービスアプリケーションをKubernetesにデプロイすることができました。
実際のAKSへのデプロイはCI/CD環境を用意して行うことが多いと思いますが、開発環境の段階で動作確認するタイミングでは、Tyeを使うこともアリかなと思いました。
